What Are Electrical Services in Commercial Offices?

Electrical services in commercial office buildings encompass the design, installation, management, and maintenance of all systems powered by electricity to ensure safe, efficient, and reliable operation of the workspace.

These systems support:

    •    Lighting and power distribution

    •    Safety and emergency services

    •    IT and communication networks

    •    Energy monitoring and automation

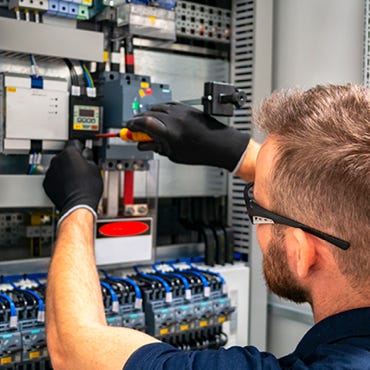

Key Components of Electrical Services

1. Power Distribution Systems

    •    Incoming supply from the utility grid or on-site generation.

    •    Main LV Switchgear (MCCB/ACB) for controlling and protecting the entire building load.

    •    Distribution boards (DBs) for separate areas/floors/tenants.

    •    Final circuits for general power outlets and equipment.

    Standards: BS 7671 (IET Wiring Regulations), 18th Edition.

2. Lighting Systems

    •    General Lighting: LED or fluorescent fixtures for offices and communal areas.

    •    Emergency Lighting:

       ◦    Required under BS 5266-1.

       ◦    Must provide illumination for safe evacuation (e.g., staircases, exits).

    •    Smart lighting controls:

       ◦    PIR (passive infrared sensors) for occupancy-based automation.

       ◦    DALI or KNX lighting control networks.

3. Small Power Installations

    •    13A sockets, USB outlets, floor boxes, and desk modules for employee use.

    •    Separate circuits for general use, IT systems, cleaning equipment, and kitchens.

    •    Must include RCD protection as per current electrical safety standards.

4. Data & Communications Infrastructure

    •    Structured cabling (CAT6/CAT6A/CAT7)

    •    Fibre backbone between communication rooms.

    •    Compliant with TIA/EIA 568, BS EN 50173, and BS EN 50174.

    •    Includes:

       ◦    Patch panels, RJ45 outlets

       ◦    Wi-Fi access point support

       ◦    VoIP system integration

5. Fire Alarm and Detection

    •    Required by BS 5839-1 (Fire Detection & Alarm Systems).

    •    Categories vary by building size and use (e.g., L1 – full coverage).

    •    Integration with:

       ◦    Manual call points

       ◦    Smoke/heat detectors

       ◦    Sounders/strobes

       ◦    Automatic door releases and lift overrides

6. Security Systems

    •    Access control: Card readers, intercoms, magnetic locks.

    •    CCTV systems: IP-based surveillance with recording.

    •    Intruder alarms and panic buttons.

    •    Integration into Building Management Systems (BMS).

7. Earthing and Bonding

    •    Essential for fault protection and safety compliance.

    •    Includes:

       ◦    Main Earthing Terminal (MET)

       ◦    Equipotential bonding of all metalwork

       ◦    Lightning protection system (BS EN 62305)

8. Mechanical Electrical Integration

Electrical systems often serve:

    •    HVAC systems (air handling units, chillers, BMS control panels)

    •    Lifts, escalators, and conveyors

    •    Pumps and valves

    •    Supplied through dedicated MCBs/MCCBs with appropriate fault protection.

Maintenance and Testing

    •    EICR (Electrical Installation Condition Report) – at least every 5 years for commercial premises or upon change of tenancy.

    •    PAT testing – regularly inspect portable appliances.

    •    Emergency lighting – monthly flick test and annual duration test.

    •    Fire alarms – weekly test and annual inspection by a competent contractor.

    •    UPS/generator servicing, thermal imaging, and load balancing as part of planned preventive maintenance (PPM).

Energy Efficiency Strategies

    •    LED lighting with daylight harvesting

    •    Smart metering and submetering to monitor tenant or departmental use

    •    Occupancy sensors to reduce lighting and HVAC waste

    •    Power factor correction units to reduce reactive power

    •    Solar PV integration on roof spaces (optional for BREEAM/LEED points)

Fit-Out and Tenant Considerations

    •    Ensure zoned DBs and metering for each tenant space.

    •    Provide floor trunking, raised access floors, and accessible cabling routes.

    •    Deliver flexibility to support agile workspaces and hot-desking.

    •    Account for AV systems, video conferencing, and charging points for laptops and electric vehicles.

What Are Mechanical Services in Commercial Offices?

Mechanical services refer to the systems and infrastructure that manage:

    •    Heating

    •    Ventilation

    •    Air Conditioning (HVAC)

    •    Plumbing and water systems

    •    Fire suppression

    •    Lifts and escalators (where applicable)

They are central to:

    •    Thermal comfort

    •    Indoor air quality (IAQ)

    •    Energy efficiency

    •    Occupant health and safety

Key Mechanical Services in Commercial Offices

1. Heating Systems

    •    Gas-fired boilers (less common with decarbonisation goals)

    •    Electric heat pumps (ASHP/GSHP)

    •    Centralised plant with pipework and fan coil units (FCUs)

    •    Underfloor heating for premium spaces

    •    Radiant panels or infrared systems in smaller areas



 Regulations: Building Regulations Part L (energy efficiency), BS EN 12828 (heating system design).

2. Ventilation Systems

    •    Mechanical Ventilation with Heat Recovery (MVHR)

      ◦    Ensures fresh air with energy-efficient heat exchange

    •    Air Handling Units (AHUs)

      ◦    Handle filtration, heating/cooling, humidification

    •    Ductwork for supply/extract routes, designed per BS EN 1505/12237

    •    Demand-Controlled Ventilation (DCV) with CO₂/occupancy sensors



  Guidance: CIBSE Guide B, BS EN 16798, Building Regulations Part F.

3. Air Conditioning (Cooling)

    •    Split or multi-split systems for small spaces

    •    VRF/VRV systems for zoned climate control

    •    Chilled water systems with FCUs or AHUs

    •    Packaged rooftop units (RTUs)



  Standards: BS EN 378 (refrigerant systems), TM44 inspections (AC systems >12kW).

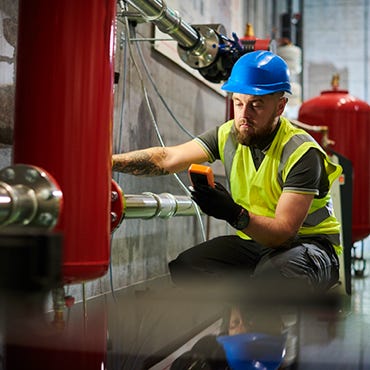

4. Public Health & Plumbing Systems

    •    Hot and cold water services to WCs, kitchens, showers

    •    Water heaters (direct or via calorifiers)

    •    Boosted cold water systems for multi-storey offices

    •    Soil and waste pipework

    •    Rainwater drainage systems



  Key standards:

    •    BS 8558 (domestic water supply)

    •    Water Supply (Water Fittings) Regulations 1999

    •    Legionella compliance (ACoP L8, HSG274, BS 8580)

5. Fire Protection Systems

    •    Dry or wet risers in high-rise offices

    •    Sprinkler systems for Category A/B fit-outs

    •    Fire dampers and smoke control in ducts

    •    Gas suppression systems for server rooms



 Regulations: BS 9999, BS 9251 (sprinklers), HTM 05-03 for healthcare spaces.

6. Lifts and Escalators (if applicable)

    •    Part of vertical transportation under mechanical services.

    •    Requires:

     ◦    LOLER compliance

     ◦    Regular inspection and servicing

     ◦    Integration with fire alarm and BMS systems

    Standard: BS EN 81 series, SAFed lift inspection protocols.

Maintenance and Servicing

Planned Preventive Maintenance (PPM) includes:

    •    Filter replacement (monthly to quarterly)

    •    Fan coil unit inspection and coil cleaning

    •    AHU maintenance and belt checks

    •    Fire damper testing (annual)

    •    Pressure testing of pipework

    •    Water treatment and Legionella checks

    •    TM44 inspections (every 5 years for AC)



All works should be recorded in an O&M manual and building logbook.

Energy Efficiency and Sustainability Measures

    •    Variable speed drives (VSDs) for fans and pumps

    •    Smart BMS control for demand-based operation

    •    High CoP heat pumps

    •    Solar thermal integration for hot water

    •    Rainwater harvesting for WCs

    •    Low flow sanitaryware to reduce water usage

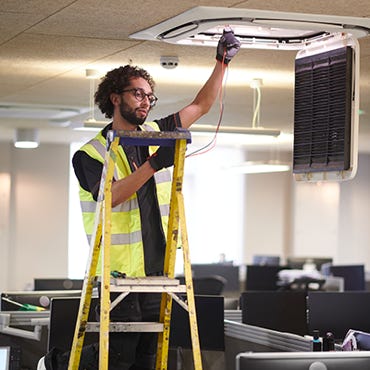

What Are Air Conditioning Services?

Air conditioning (AC) services in commercial office settings involve the design, installation, operation, and maintenance of systems that control:

    •    Temperature (cooling/heating)

    •    Humidity

    •    Airflow

    •    Indoor Air Quality (IAQ)

These systems ensure occupant comfort, equipment performance, compliance with building regulations, and energy efficiency.

Key System Types for Commercial Offices

1. Split and Multi-Split Systems

    •    Single-split: One indoor unit per outdoor condenser.

    •    Multi-split: Multiple indoor units served by one outdoor unit.

    •    Common in: Small office suites, retrofits.

    •    Pros: Economical, easy installation.

    •    Cons: Limited zoning control, aesthetics.

2. Variable Refrigerant Flow (VRF/VRV) Systems

    •    Sophisticated, modular systems using inverter-driven compressors.

    •    Can simultaneously heat and cool different zones.

    •    Ideal for medium-to-large commercial offices.

    •    Highly flexible with:

    ◦    Ceiling cassette units

    ◦    Wall-mounted or ducted indoor units

    Pros:

    •    High efficiency

    •    Zoned control

    •    Quiet operation

3. Chilled Water Systems

    •    Uses chillers to produce cold water circulated through fan coil units (FCUs) or air handling units (AHUs).

    •    Common in large multi-floor buildings or campus-style offices.

    Pros:

    •    Suitable for large loads

    •    Centralised control

    •    Can integrate with building cooling networks

4. Packaged Rooftop Units (RTUs)

    •    Self-contained HVAC systems placed on rooftops.

    •    Includes compressors, fans, filters, and sometimes gas burners for heating.

    Used for: Open-plan spaces, warehouses, or when internal plant space is limited.

5. Central Air Handling Units (AHUs)

    •    Handle fresh air intake, filtration, cooling/heating, and distribution via ductwork.

    •    Often part of central HVAC systems paired with chillers, boilers, or heat pumps.

    •    May include energy recovery wheels, humidifiers, and UV disinfection modules.

Key Components of Office AC Services

• Indoor units (FCUs, cassettes, ducted) - Deliver cooled/heated air
• Outdoor condensers - Discharge heat to the external environment
• Thermostats / Zone Controllers - User comfort control
• BMS Integration - Automated scheduling, monitoring, and energy analysis
• Filters - Remove particulates and allergens
• Ductwork and diffusers - Distribute conditioned air uniformly

Design Considerations

• Cooling load - Based on occupancy, lighting, equipment, glazing
• Zoning - Separate systems by use case (e.g. meeting rooms vs. open-plan)
• Redundancy - Back-up units for critical areas (e.g. server rooms)
• Noise control - Low-noise systems for acoustic comfort
• Aesthetics - Recessed units, linear diffusers for clean finishes
• Energy efficiency - Selection of SEER/EER-rated systems
• Fresh air provision - In line with CIBSE Guide B and BS EN 13779
• Compliance - Part L (Building Regs), F-Gas Regs, TM44 energy inspections

Air Quality and Ventilation

    •    Offices must maintain adequate fresh air supply, often through mechanical ventilation with heat recovery (MVHR).

    •    CO₂ monitoring and demand-controlled ventilation (DCV) are common.

    •    Ensure compatibility with HTM 03-01 or HTM 04-01 in healthcare-adjacent offices.

Regulatory Compliance & Standards (UK)

• Building Regulations Part L - Energy efficiency
• F-Gas Regulations - Leak checks and refrigerant handling
• TM44 (CIBSE) - Mandatory AC energy inspections every 5 years
• BS EN 378 - Safety of refrigerant systems
• CIBSE Guides B1–B5 -Best practices for HVAC design and operation

Maintenance & Inspection

Planned Preventive Maintenance (PPM) Should Include:

    •    Quarterly or biannual servicing

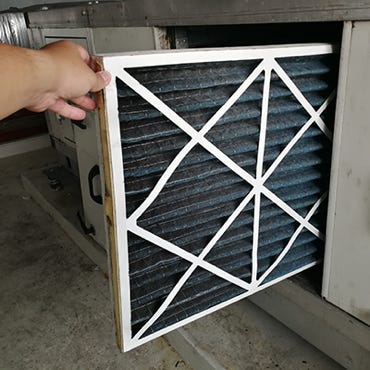

    •    Filter cleaning/replacement

    •    Refrigerant pressure and leak testing

    •    Check for condensate drainage issues

    •    Calibration of thermostats and controls

    •    TM44 Inspection Report every 5 years (for systems >12kW total)

Maintenance must comply with F-Gas Regulation (EU 517/2014) if refrigerants are used.

Energy Efficiency Strategies

    •    Inverter compressors: Adjust to load, reducing consumption.

    •    Smart scheduling via BMS: Avoid cooling unoccupied zones.

    •    Heat recovery ventilation (HRV): Captures waste energy from exhaust air.

    •    Free cooling: Uses outdoor air when ambient conditions permit.

    •    Solar PV offsets: Supports low-carbon operation of AC plant.

What Are Ventilation Services?

Ventilation services in commercial offices refer to the provision of fresh air, the extraction of stale air, and the circulation of conditioned air within indoor spaces. These systems manage:

    •    Indoor Air Quality (IAQ)

    •    Thermal comfort

    •    Odour and moisture control

    •    Pollutant dilution (e.g. CO₂, VOCs, airborne pathogens)

Ventilation is delivered via natural, mechanical, or hybrid (mixed-mode) methods.

Types of Ventilation Systems in Commercial Offices

1. Natural Ventilation

    •    Utilises windows, vents, atria, and pressure differences.

    •    No mechanical assistance, relies on wind and thermal buoyancy

 Pros:

    •    Low energy consumption

    •    Simplicity

 Cons:

    •    Unreliable in variable weather

    •    Limited control

    •    Often non-compliant for deep-plan or high-occupancy offices



 Referenced in: Building Regulations Part F, CIBSE AM10

2. Mechanical Ventilation

Systems use fans, ductwork, and controls to supply and extract air.

a) Mechanical Supply and Extract

    •    Balanced air handling with equal rates of supply and extract.

    •    Common in medium-to-large offices.

b) Mechanical Extract Only

    •    Extracts stale air (e.g., from toilets, kitchens); relies on air ingress through windows or grilles.

c) Mechanical Ventilation with Heat Recovery (MVHR)

    •    Recovers thermal energy from exhaust air and transfers it to incoming fresh air.

    •    Improves energy performance and comfort.



  Often required in new builds or air-tight buildings to meet Part L.

3. Mixed-Mode (Hybrid) Systems

    •    Combines natural and mechanical methods.

    •    Can automatically switch based on indoor/outdoor conditions.

Examples:

    •    Natural ventilation in spring/autumn, mechanical backup in winter/summer.

4. Local Ventilation Solutions

    •    Air Handling Units (AHUs): Large centralised systems that manage filtration, heating/cooling, and humidification.

    •    Fan Coil Units (FCUs): Localised units that recirculate room air and condition it thermally.

    •    Terminal units: Supply/extract diffusers, VAV boxes, or displacement units in occupied zones.

Indoor Air Quality (IAQ) and Monitoring

    •    Parameters to control:

      ◦    CO₂, VOCs, humidity (40–60%), PM2.5/PM10, temperature

    •    Sensors and demand-controlled ventilation (DCV) respond to real-time air quality needs.

    •    Offices increasingly adopt BREEAM, WELL Building Standard, or RESET Air frameworks for IAQ excellence.

Filtration & Air Cleaning

    •    ISO 16890-rated filters in AHUs.

    •    HEPA or UVGI modules in healthcare-adjacent or high-risk environments.

    •    MERV 13+ filters recommended in post-COVID design for higher IAQ.

    •    Ensure filters are:

       ◦    Sized correctly

       ◦    Accessible for cleaning/replacement

       ◦    Monitored for pressure drop

Energy Efficiency & Sustainability Strategies

    •    Heat recovery units to reduce energy loss.

    •    Variable speed fans to reduce over-ventilation.

    •    Zoned ventilation control for occupied vs. unoccupied areas.

    •    Free cooling via outdoor air when conditions allow.

    •    Low leakage ductwork and insulation to reduce thermal loss.

Fire Safety and Ventilation

    •    Fire dampers in ductwork to prevent fire/smoke spread.

    •    Smoke extract fans in stairwells or basements (required in certain buildings).

    •    Integration with fire alarm and suppression systems (per BS 9999, BS 5839-9).

What Are Fabric Services?

Fabric services refer to the hard and soft finishes, structural integrity, and architectural features of a commercial building that do not involve active systems (like HVAC or electrical). They ensure that the building remains safe, compliant, visually appealing, and suitable for occupancy.

These services are critical for:

    •    Occupant wellbeing

    •    Health and safety compliance

    •    Fire safety

    •    Aesthetic quality

    •    Energy performance

    •    Asset preservation

Key Elements of Fabric Services

1. Building Envelope

    •    External walls: Cladding, brickwork, render, insulation.

    •    Roofing: Pitched or flat roofs, waterproofing membranes, gutters, soffits.

    •    Windows and glazing systems: Double/triple-glazed units, solar shading, acoustic glazing.

    •    Doors: Fire doors, security doors, automatic entrance systems.

    Relevant standards: Building Regulations Part A (Structure), Part B (Fire Safety), Part L (Thermal Performance), BS 8213 (Windows/Glazing).

2. Internal Fabric Finishes

    •    Partitions and walls: Stud partitions, acoustic barriers, glazed partitions.

    •    Ceilings: Suspended ceilings, acoustic tiles, MF (metal frame) ceilings.

    •    Floors: Raised access floors, carpet tiles, vinyl, resin, screed.

    •    Joinery and carpentry: Skirting boards, door frames, internal doors, bespoke fittings.

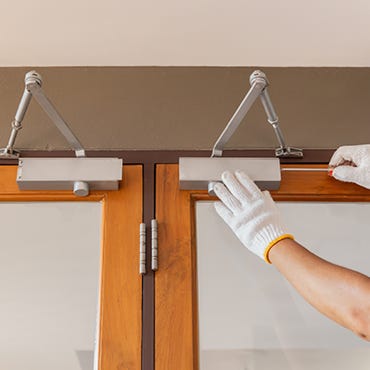

    •    Internal doors and ironmongery: Including fire-rated door sets and closers.



 Often aligned with BS 8214 (timber fire doors), BS 8300 (inclusive design), and Part M (accessibility).

3. Fire Compartmentation and Passive Fire Protection

    •    Fire-rated walls, ceilings, and barriers

    •    Fire stopping: Around ducts, cable trays, and service penetrations

    •    Intumescent coatings on steelwork

    •    Cavity barriers and fire seals in ceilings and voids



 Compliance: BS 476 series, BS EN 1366, and Building Regulations Part B.

4. Structural Fabric Maintenance

    •    Plastering and repairs to walls and ceilings

    •    Painting and decorating

    •    Corrosion control of exposed steel elements

    •    Roof surveys and repairs

    •    Maintenance of concrete surfaces, brickwork repointing, and damp-proofing

5. Fixtures and Fittings

    •    Integrated furniture and built-in storage

    •    Blinds, acoustic panels, whiteboards, and display systems

    •    Reception desks and service counters

    •    Fire signage and evacuation maps (compliant with BS 5499-4)

6. Access and Façade Maintenance

    •    Abseil and cradle systems for window cleaning and repairs

    •    Façade inspections using drones or MEWPs

    •    External painting and sealing

    •    Maintenance of external staircases, walkways, balconies



  Informed by BS 9999, Work at Height Regulations 2005, and PUWER.

Fabric Services in Healthcare-Adjacent Offices

If the office is located in a healthcare building or supports healthcare operations:

    •    HTM 56 & HTM 05-02 may apply (fire doors, finishes, infection control)

    •    Anti-microbial coatings and smooth finishes preferred

    •    Fire compartmentation and integrity is especially critical
